What “fast charging” actually means on the AC240

Out of the box, your BLUETTI AC240 charges at 800 W in standard or silent mode. That’s fine for overnight top-ups, but slow when you need power back in a hurry a full 0-to-100% charge takes 4–5 hours.

Switch to fast charge mode with this cable and a 30 A wall outlet, and input power jumps to 2,200 W (AC240) or 2,300 W (AC240P). Same battery, roughly 3x faster charging full recharge in about 90 minutes to 2 hours. If you also have a B210 or B210P expansion battery connected, input jumps to 2,400 W, giving you the fastest possible AC charging on this platform.

For anyone using the AC240 as a work power station, event backup, or job-site tool where turnaround time matters, this cable is a genuine time-saver not a nice-to-have.

The L14-30 plug is this the cable for your wall outlet?

BLUETTI makes three different 30 A cables for the AC240. Same current rating, same fast-charge speed, different wall plugs. Choose based on what your wall outlet actually is:

• NEMA L14-30 (this SKU) — locking twist-lock 4-prong plug. Found on generator inlets, backup power ports on some home electrical panels, workshop 240 V outlets, and industrial installations. If your wall socket has an oval face with a locking-ring style connection, that’s an L14-30.
• NEMA TT-30 — 3-prong RV outlet plug. Found at RV parks, campgrounds, and RV-hookup home outlets. Common on private RV pads.
• NEMA 15-A / 20-A parallel cable for pairing two AC240 units in parallel.

If your outlet is a standard household socket (NEMA 5-15 or NEMA 5-20), none of these fast-charge cables work with it you’ll charge at the standard 800 W using the cable included with your AC240. To use fast charging, you need to install a compatible 30 A outlet, either L14-30 (for permanent home installation) or TT-30 (for RV-pad use).

Compatible power stations

Confirmed compatible:

• ✅ BLUETTI AC240 (portable power station, 2,000+ Wh, IP65-rated)
• ✅ BLUETTI AC240P (higher-power variant of AC240)

Also enhanced with expansion batteries:

• ✅ B210 (paired with AC240 → 2,400 W max input)
• ✅ B210P (paired with AC240P → 2,400 W max input)

Not compatible:

• ❌ BLUETTI AC500 — uses its own 50 A split-phase charging cable (NEMA 14-50)
• ❌ BLUETTI AC300 — uses a different 30 A cable (30A AC to Aviation Plug)
• ❌ BLUETTI AC200 / AC200P / AC200Max / AC200L — different input platform
• ❌ BLUETTI AC180 / AC60 / AC70 — smaller units, different input rating
• ❌ BLUETTI EP500 Pro / Apex 300 / EP800 / EP900 — different platforms entirely

If you’re not sure which BLUETTI unit you own, check the model label before ordering cross-model cable swaps aren’t supported.

Max input power breakdown

Charge times are directional and vary with ambient temperature and battery starting level.

Full specifications

What’s in the box

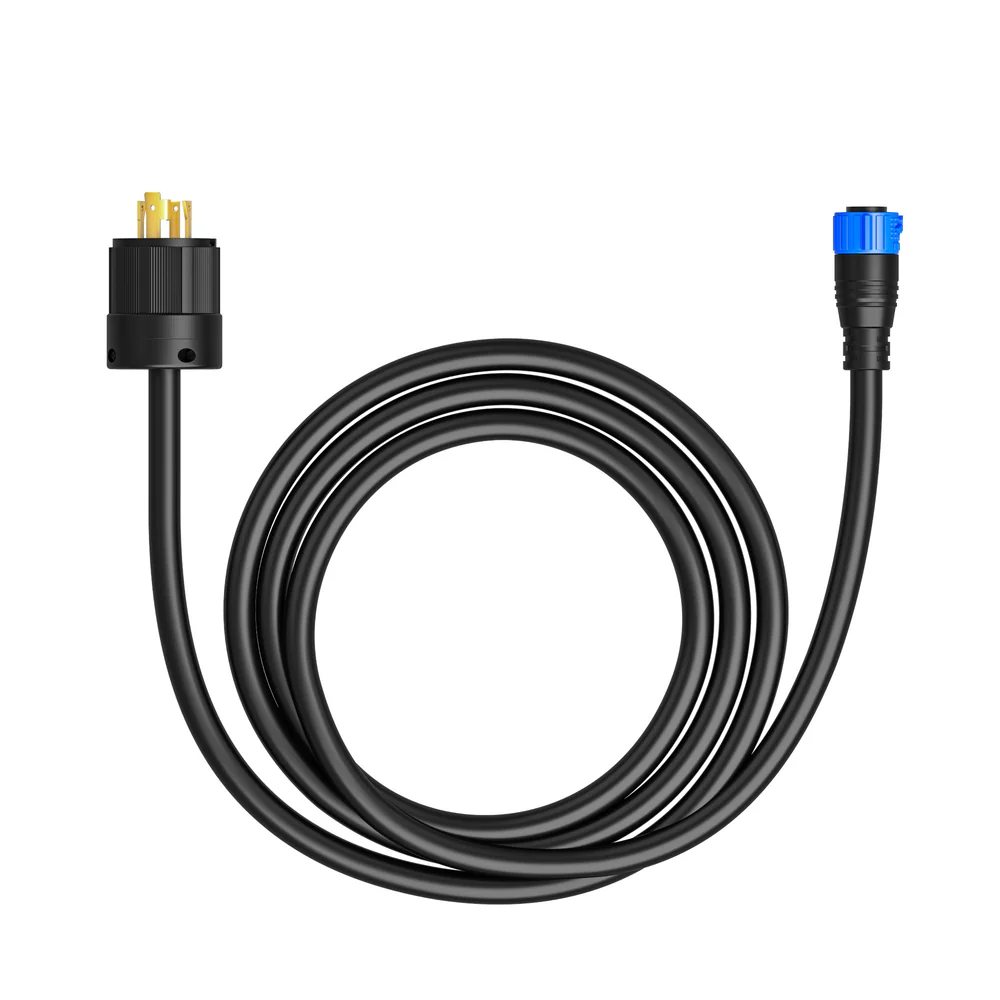

• 1 × BLUETTI 30 A Fast Charging Cable with NEMA L14-30 plug
• Product care documentation

Not included (sold separately):

• AC240 or AC240P power station
• B210 or B210P expansion battery
• NEMA L14-30 wall outlet installation (if you don’t already have one)
• Any other cables

Where this cable sits in BLUETTI’s fast-charging ecosystem

BLUETTI ships several 30 A charging cables across its product line, each specific to a particular power station and wall plug type. Match the cable to your setup carefully:

Each cable is specific to its combination of power station + wall plug. Cross-platform swaps aren’t supported and won’t fit the aviation connectors on the power-station side differ between BLUETTI generations.

Regional restriction read this before ordering

NEMA L14-30 is a North American electrical standard (US and Canada). This cable is designed for 120 V / 240 V split-phase systems and won’t work in:

• ❌ New Zealand or Australia (230 V / 50 Hz single-phase)
• ❌ UK or Europe (230 V / 50 Hz)
• ❌ UAE, Middle East, most of Asia (220–230 V single-phase)

For non-NA markets, BLUETTI supplies region-specific charging accessories check your regional BLUETTI distributor for the correct fast-charge cable for your electrical system.

Setup how to use it

A licensed electrician should install any 30 A outlet. For reference:

1. Verify your NEMA L14-30 outlet is correctly wired and rated at 30 A
2. Plug the L14-30 end into the wall outlet, twisting to lock in place
3. Plug the aviation-plug end into your AC240 or AC240P AC input port
4. Set your AC240 to Fast Charge mode via the display or app
5. Charging begins automatically — verify the display shows 2,200–2,400 W incoming power

The whole process takes about 30 seconds once the wall outlet is installed. The locking L14-30 plug prevents accidental disconnection during charging useful in workshop or job-site environments where cables get bumped.

Care and maintenance

• Don’t force the plug — L14-30 twist-locks with a specific rotation. Line up the prongs, insert, then twist clockwise to lock
• Keep away from water — this is an AC-mains cable, not rated for outdoor exposure
• Inspect the cable before each use — check for damage at the plug connections
• Store coiled loosely — tight coils over time can damage internal conductors
• Replace immediately if damaged — don’t attempt to repair AC mains cables yourself
